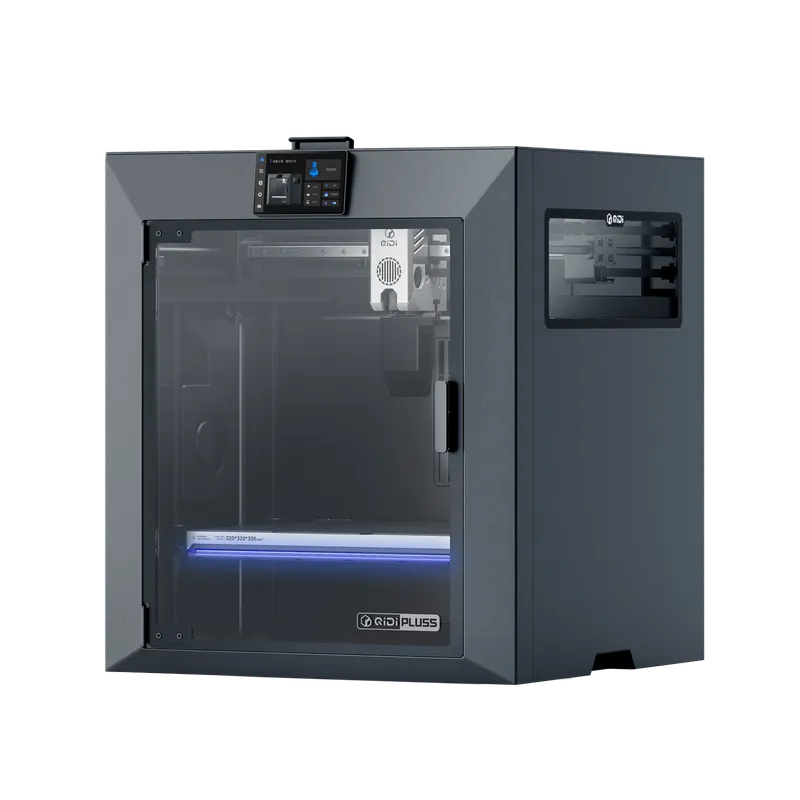

Name: QIDI Tech Plus5
Brand: Qidi Tech
Price: 18990 EUR
Availability: InStock

Large-format printing without unnecessary compromises

QIDI Tech Plus5 combines a spacious build chamber, fast CoreXY kinematics, and equipment designed for reliable printing with technical materials. The 320 × 320 × 300 mm build volume provides ample space for large prototypes, functional parts, fixtures, and larger design models. The enclosed construction together with active chamber heating up to 65 °C helps maintain stable conditions when processing materials with increased shrinkage. Plus5 is therefore suitable not only for PLA and PETG, but also for ABS, ASA, PA, PC, and selected carbon- or glass-fiber-reinforced filaments.

Fast and precise CoreXY construction

The CoreXY motion system uses 9mm 1.5GT belts and highly durable linear guidance for the X-axis. The print head reaches a movement speed of up to 600 mm/s and acceleration of up to 20 000 mm/s². Input Shaping helps reduce vibrations and maintain clean details even during fast printing. Movement along the Z-axis is handled by two independently driven trapezoidal lead screws. The rigid aluminum build platform with a silicone heating element ensures even bed heating up to 120 °C.

370 °C nozzle for technical filaments

The all-metal hotend with a bimetal nozzle reaches temperatures of up to 370 °C. The Direct Drive extruder with hardened steel gears provides precise filament feeding and also supports flexible materials such as TPU and TPE with a recommended hardness of 95A. A 0,4 mm diameter nozzle is installed as standard. Optional 0,2, 0,6, and 0,8 mm variants can also be used for different detail or speed requirements.

Truly automatic bed leveling

The load sensor integrated directly into the hotend uses the nozzle as the measuring point. The printer therefore automatically measures the build surface without the need for manual Z-offset adjustment. The result is a consistent first layer and faster preparation for every print. The magnetic double-sided PEI build plate offers good adhesion during printing and easy removal of the finished model after cooling.

AI camera and smart print monitoring

The built-in camera with a resolution of up to 1080p enables remote monitoring of the printing process, time-lapse recording, and automatic detection of selected problems. A filament runout sensor and the ability to resume printing after a power outage are also included. Connection is possible via dual-band Wi-Fi, Ethernet, or USB. The printer can also be controlled remotely through the QIDI ecosystem.

Cleaner operation in an enclosed chamber

The integrated three-stage filtration system combines:

G3-class pre-filter,
H12 HEPA filter,
coconut-shell activated carbon filter.

The filtration reduces the amount of fine particles and odors released from the build chamber. When printing materials that produce fumes, it is nevertheless always recommended to ensure adequate room ventilation.

Ready for multicolor and multimaterial printing

QIDI Plus5 is compatible with the optional QIDI BOX system. Once connected, it can automate material feeding and enable multicolor or multimaterial models. When using multiple units, the system can work with up to 16 colors. QIDI BOX is not included in the printer's standard package.

Who is the QIDI Plus5 suitable for?

for demanding hobby users and professional workshops,
for large prototypes and functional structural parts,
for printing with ABS, ASA, PA, PC, and composite filaments,
for users requiring an enclosed and actively heated chamber,
for fast small-batch production,
for future expansion with the QIDI BOX multicolor system.

QIDI Tech Plus5 offers a combination of large build volume, high temperatures, automatic calibration, and smart monitoring in a fully enclosed design. It is ready for use shortly after unboxing while also providing the parameters required for advanced technical projects.
